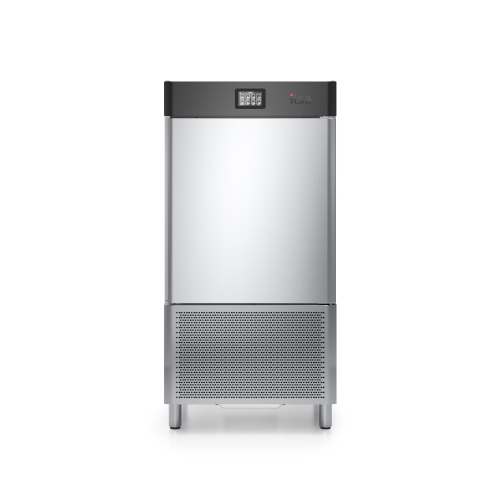

Blast chiller combi chill multifunction +90°/-18°

MODELLO: AB08E4041

Blast chiller combi chill multifunction +90°/-18°

MODELLO: AB08E4041
Evolution
Typology : 8 pans
Dimensions (mm) :
  • Air condensation
Warranty 2 years
Ideal for
Download the
technical documentation
Technical values
  • Positive Cycle32
  • Negative Cycle20
  • Std Set up Capacity8 pans
  • Cooling gasGAS R452A
  • Output in Watt3300W
  • Supply voltage400V~ 50Hz
  • Temperature range +90°… -18°
  • Energetic class-
  • Climate class-
  • Tray sizeGN 1/1 - 600x400
  • Standard equipment: Air pumpCore probe
  • Compartments1
  • External dimensionArray
  • Internal dimension664x415x720 mm
  • Capacity-
  • Total power2300W
  • MaterialAISI 304

Stainless steel AISI 304 and external scotch-brite satin finish; 60 mm insulation thickness, with high-density (40 kg/m3) HFC-free foam; stainless steel adjustable feet; cell with rounded internal corners for perfect cleaning and hygiene; easily removable wire grids for GN 1/1 or 60×40 trays; frontal air circulation inside the technical compartment for even flow distribution; spring-loaded, self-closing reversible doors with removable magnetic gasket; micro-door switch to stop the fan when the door is open; core probe also available in heated version as standard; 230V/50Hz single-phase power supply.
